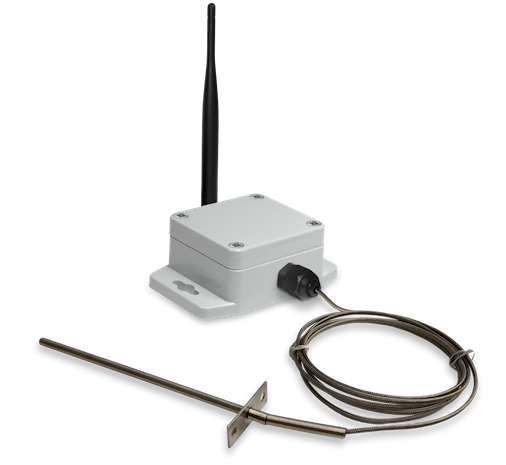

Wireless Thermocouple Sensors

Enhance Your High-Temperature Monitoring with ioX-Connect Wireless Thermocouple Sensors
Experience the next level of precision and reliability with our ioX-Connect Wireless Thermocouple Sensors, designed for seamless integration into high-temperature applications like commercial ovens, kilns, and chimneys. Our sensors boast a robust wireless data transmission range of over 1,200 feet, ensuring that you stay connected to critical data, no matter the environment.
Key Features:
- Extended Temperature Range: Capable of monitoring temperatures up to 400°C (752°F), perfect for industrial and commercial settings.
- Bank-Grade Security: Enjoy peace of mind with top-tier security protocols, keeping your data safe and secure.
- Remote Temperature Monitoring: Effortlessly monitor conditions from a distance without the need for complex wiring or manual checks.
- Automatic Alerts: Set user-defined thresholds to receive instant alerts via text, email, or call if temperatures exceed your specified limits.
Ideal for monitoring temperature in commercial ovens and kilns, the ioX-Connect Wireless Thermocouple Sensor is user-programmed to wake, measure, and transmit temperature data at specified intervals, ensuring continuous oversight with minimal user intervention.
Whether you're looking to optimize the efficiency of your high-temperature industrial applications or need a reliable monitoring solution, the ioX-Connect Wireless Thermocouple Sensor is your go-to choice for advanced, secure wireless temperature monitoring.
Intelligent Wireless Thermocouple Sensors for High-Temperature Monitoring
Not ready to buy yet? Feel free to contact us at: sales@iox-connect.com to discuss your specific needs
Enhance Your High-Temperature Monitoring with ioX-Connect Wireless Thermocouple Sensors
Experience the next level of precision and reliability with our ioX-Connect Wireless Thermocouple Sensors, designed for seamless integration into high-temperature applications like commercial ovens, kilns, and chimneys. Our sensors boast a robust wireless data transmission range of over 1,200 feet, ensuring that you stay connected to critical data, no matter the environment.
Key Features:
- Extended Temperature Range: Capable of monitoring temperatures up to 400°C (752°F), perfect for industrial and commercial settings.
- Bank-Grade Security: Enjoy peace of mind with top-tier security protocols, keeping your data safe and secure.
- Remote Temperature Monitoring: Effortlessly monitor conditions from a distance without the need for complex wiring or manual checks.
- Automatic Alerts: Set user-defined thresholds to receive instant alerts via text, email, or call if temperatures exceed your specified limits.
Perfectly suited for the rigorous demands of commercial ovens and kilns, the ioX-Connect Wireless Thermocouple Sensor allows for effortless programming by users to activate, capture, and send temperature readings at designated times. This feature guarantees persistent monitoring with barely any need for manual handling.
Data Sheets:
- Thermo Couple Sensor Data Sheet
OTHER DOCUMENTS:
DRAWINGS
Sensor Probes:

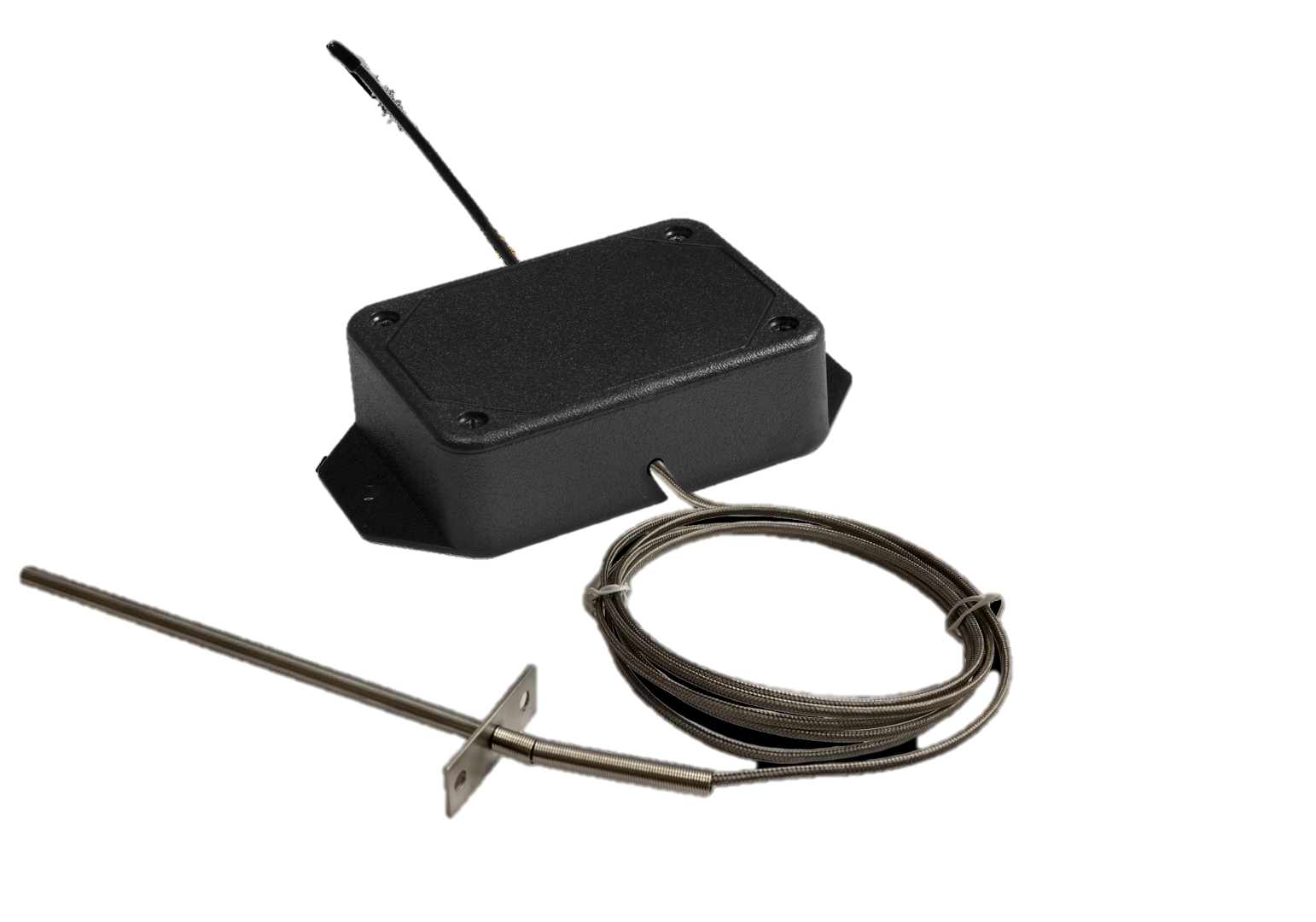

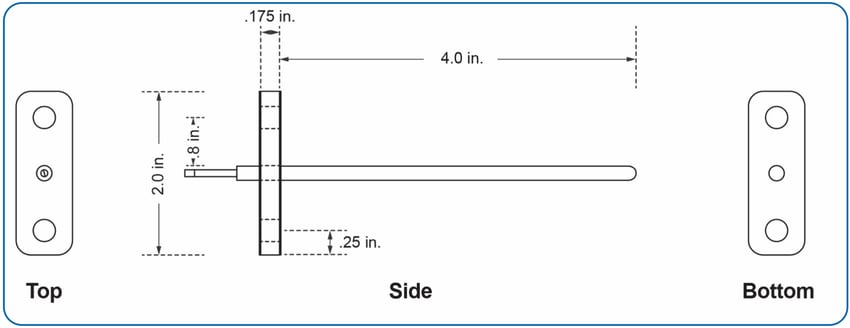

Thermocouple Sensor K-Type Fixed Probe

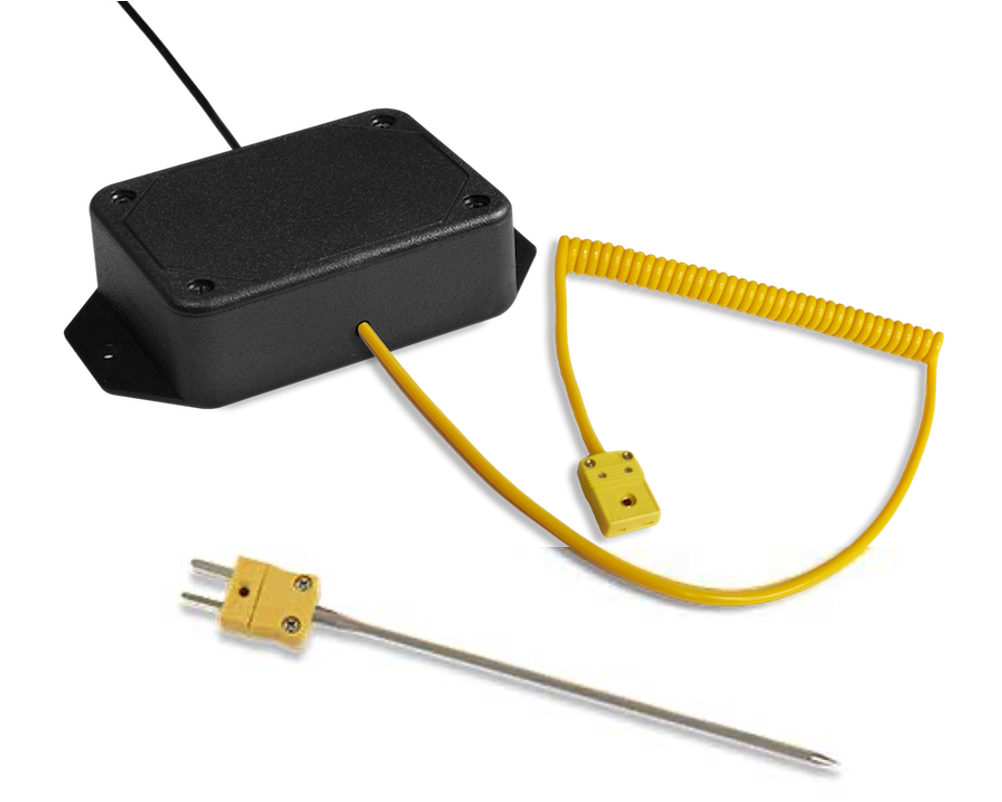

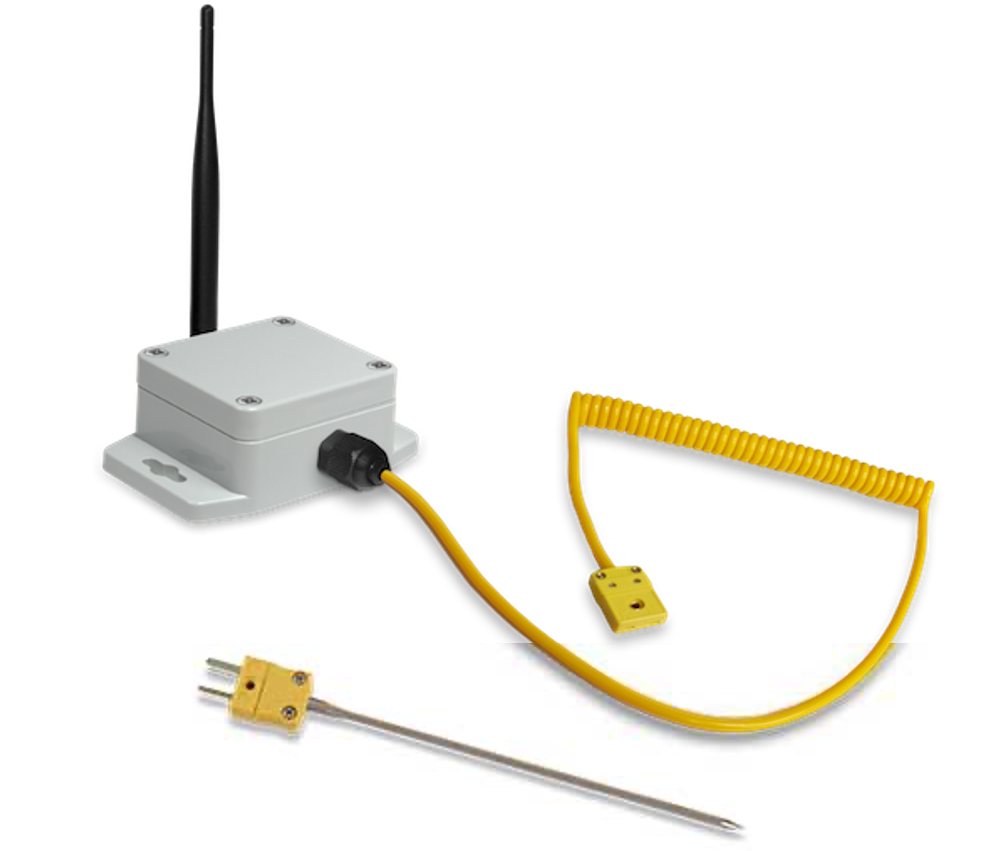

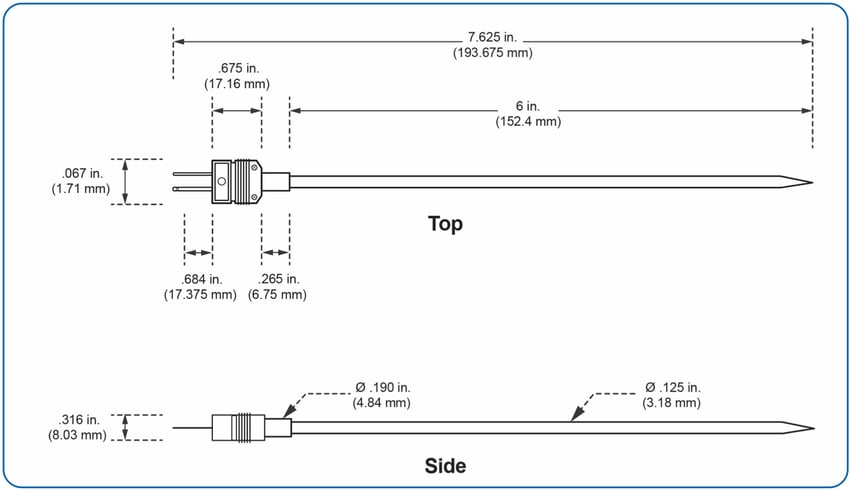

Thermocouple Sensor K-Type Quick Connect Probe
1. Commercial Kitchen Monitoring
- Ovens and Grills: Monitor the temperature of commercial ovens and grills to ensure optimal cooking temperatures and compliance with food safety standards.
- Refrigeration: Keep track of temperatures in commercial refrigerators and freezers to prevent food spoilage.
2. Industrial Applications
- Kilns: Use in ceramic or pottery kilns to monitor and control the high temperatures, crucial for product quality.
- Heat Treatment Plants: Monitor temperature during the heat treatment of metals to ensure the process meets the required specifications.
- Plastic Molding: Monitor temperature in plastic molding machines to maintain the correct heat levels for effective molding operations.
3. Environmental Monitoring
- Greenhouses: Manage and monitor temperature to optimize growth conditions for plants.
- Storage Facilities: Ensure temperature stability in storage facilities that hold temperature-sensitive goods like pharmaceuticals or organic materials.
4. Energy Production
- Power Plants: Monitor temperatures in different parts of a power plant, such as boilers or reactors, to ensure safety and efficiency.
- Renewable Energy Systems: Track temperature conditions in solar panels or wind turbines to prevent overheating and maximize efficiency.
5. Research and Development
- Laboratory Experiments: Use in various scientific research setups where precise temperature monitoring is crucial.
- Material Testing: Monitor and log temperature during material stress tests to assess performance under varying thermal conditions.
6. Automotive and Aerospace
- Engine Testing: Monitor engine temperatures under various operational conditions to ensure performance and safety.
- Aerospace Components: Use in testing aerospace components that must withstand extreme temperatures.
7. HVAC System Monitoring
- Monitoring and Regulation: Ensure HVAC systems operate within desired temperature ranges to enhance energy efficiency and occupant comfort.
- Enterprise AA-battery powered: Our most popular type is ideal for typical commercial & enterprise environments, such as server rooms. A 1,200+ ft. range readily covers most facilities.
- Commercial CC-battery powered: Compact sensor is great for space-restricted areas such as control cabinets or cold storage.
- Industrial: Sensor's weatherproof, NEMA-rated enclosure withstands demanding indoor/outdoor use, e.g., warehouses & production facilities.
Connection Type | Wireless | ||
---|---|---|---|
Sensor Type | Commercial (CC Battery) | Enterprise (AA Battery) | Industrial |
Sensor Housing Dimensions1 |
2.0" (50.8 mm) Width 0.875" (22.225 mm) Height 1.125" (28.575 mm) Depth |
4.375" (111.125 mm) Width 2.470" (62.738 mm) Height 1.111" (28.219 mm) Depth |
3.701" (94.0 mm) Width 2.316" (58.84 mm) Height 1.378" (35.0 mm) Depth |
Gateway Required? | Yes | Yes | Yes |
Range2 | 1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
Battery Required? | Yes Coin Cell (CR123) |
Yes Two AA's |
Yes 1800mAH Industrial |
Battery Life3 | Up to 2 Years | Up to 10 Years | Up to 5 Years |
Internet Required for Data Transmission?4 | No | No | No |
Outdoor Use or Wet Conditions? | No | No | Yes (IP65 Nema Rated Housing) |
Works with Other ioX-Connect Sensors? | Yes | Yes | Yes |
1Dimensions for standard housing sizes. For sensors in non-typical housings, please refer to their data sheets.
2Actual range may vary depending on environment.
3Battery life is determined by sensor reporting frequency and other variables.
4This is transmission from sensor to gateway. All gateways will need active connection for transmission to ioX-Connect. Gateway transmission can be Ethernet or Cellular.
Commercial Sensor Enclosure:
Enterprise Sensor Enclosure:
Industrial Sensor Enclosure:
Exceptional Value
Industry leading wireless sensor range, offering multiple installation options
Best in class power management technology allows for greater sensor battery life.
With so many different sensor types, ioX wireless sensors gives you options to monitor multiple scenarios.
Be up and running within 15 minutes. Easy plug-and-play IoT solution.
Your all-in-one wireless monitoring solution
Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below.
ioX-Connect's Wireless Sensor communication can reach 1,200+ feet through 12+ walls non-line-of-sight.
You can connect up to 50 different ioX Wireless Sensors to 1 gateway. Gateways can also serve as range extenders if you have a big site where sensors will be installed more than 1,000 ft apart.
The life span of the battery is dependent on several factors, including:
- How frequently does the sensor transmit data (Heartbeat)
- How far the sensor is from the wireless gateway
- The obstructions that can cause difficulty in sending data (farther distance and obstructions require that the radio operate at longer intervals to send and receive data)
ioX-Connect Sensors and Gateways provide automated data logging. Our sensors can store up to 4,000 messages if the gateway connection is lost (non-volatile flash, persists through the power cycle). For 10-minute Heartbeat settings, this accounts for approximately 22 days of messages or readings. For 2-hour Heartbeat settings, our sensors can log up to 266 days of readings.
Plus, our gateways can save up to 50,000 sensor messages if its connection is lost. Our sensors and gateways can log all this data before sending it to the ioX-Connect platform—our sensor management and monitoring software—for cloud storage, trending, and analysis.
ioX-Connect wireless products use Encrypt-RF bank-level security, featuring a 256-bit exchange to establish a globally unique key and an AES-128 CTR for all data messages. Security is maintained at all communication points from sensor to gateway, gateway to software, and back again.
ioX-Connect's standard wireless products use several features to help protect sensor data in transit. The proprietary sensor protocol uses very low transmit power and requires specialized radio equipment to operate. Typical wireless devices that run on non-proprietary communication protocols (Wi-Fi, Bluetooth, Zigbee) operate using different frequency bands, so you can't use them to eavesdrop on the radio communications from the ioX-Connect family of sensors. In addition, we use a robust packet tampering evaluation routine to ensure that traffic isn't altered between the sensors and the gateways. This enables us to check for well-formed data packets that only originate from ioX-Connect enabled devices. We have algorithms that protect against spoofing and re-transmission of wireless data packets to safeguard data further.
Absolutely! This is what sets ioX-Connect apart from all other IoT solutions out there. ioX-Connect's Analytics module allows you to combine data from different sources not just sensors to create cross functional reports, analyze and trend sensor data, interact with your historical data and collaborate across departments thereby giving you more insights into your business/operations.
Yes. The ioX-Connect platform can be fed with data from external sensors provided we can retrieve the external sensor data through some service like an API. Please reach out to us at: sales@iox-connect.com for more detail on integration capabilities.
