Wireless Open/Close Sensors Sensors
Monitor Open/Close status so that Windows, Doors and Storage are closed and secure
Storage and Security-Dependent operations rely on real-time, accessible alerts on storage or building security integrity to ensure the safety and efficiency of all they monitor - food, pharmaceuticals, and the built environment. Operating a business efficiently, yet cost effectively is challenging. There’s plenty to worry about without having to expend precious (and costly) human resources to manually monitor things that could be automated.
Collect. Analyze. Act.
With the iox Family of Wireless Open/Close Sensors, you'll know what you need to know...now. Real-time email and text alerts notify operators in the event of any out-of-spec or trending temperature anomaly, minimizing response times and maximizing the effectiveness of your asset's performance.
Asset Performance. Managed.
Secure, cloud-based, always-on data collection and logging allows full-time / real-time eyes on your assets - with simple deployment and installation in minutes.
Intelligent Wireless Open/Close Sensors
Free Basic Monitoring Software included in any hardware purchase.

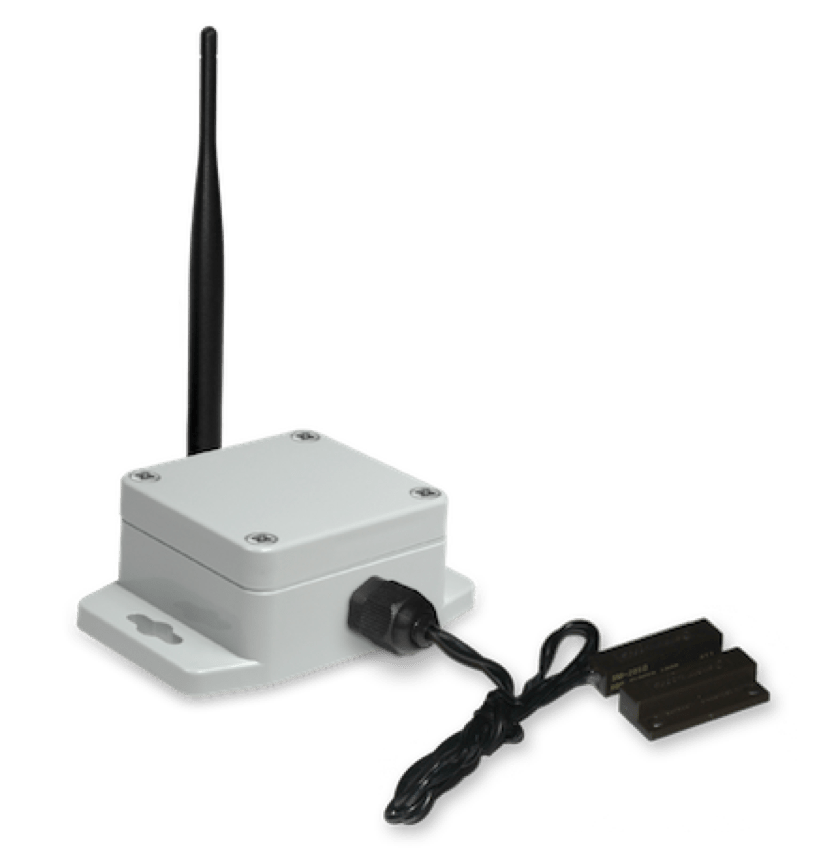

Wireless Open-Closed Sensor - Industrial
The ioX Open/ Close sensor uses an external magnetic switch and trigger magnet to detect status—when the magnets meet, a door or window is closed. The sensor can also be configured via ioX-Connect software to only send notifications during specific dayparts (such as after-hours). Data also sheds light on access patterns—a boon for the foodservice, healthcare, and hospitality sectors etc.

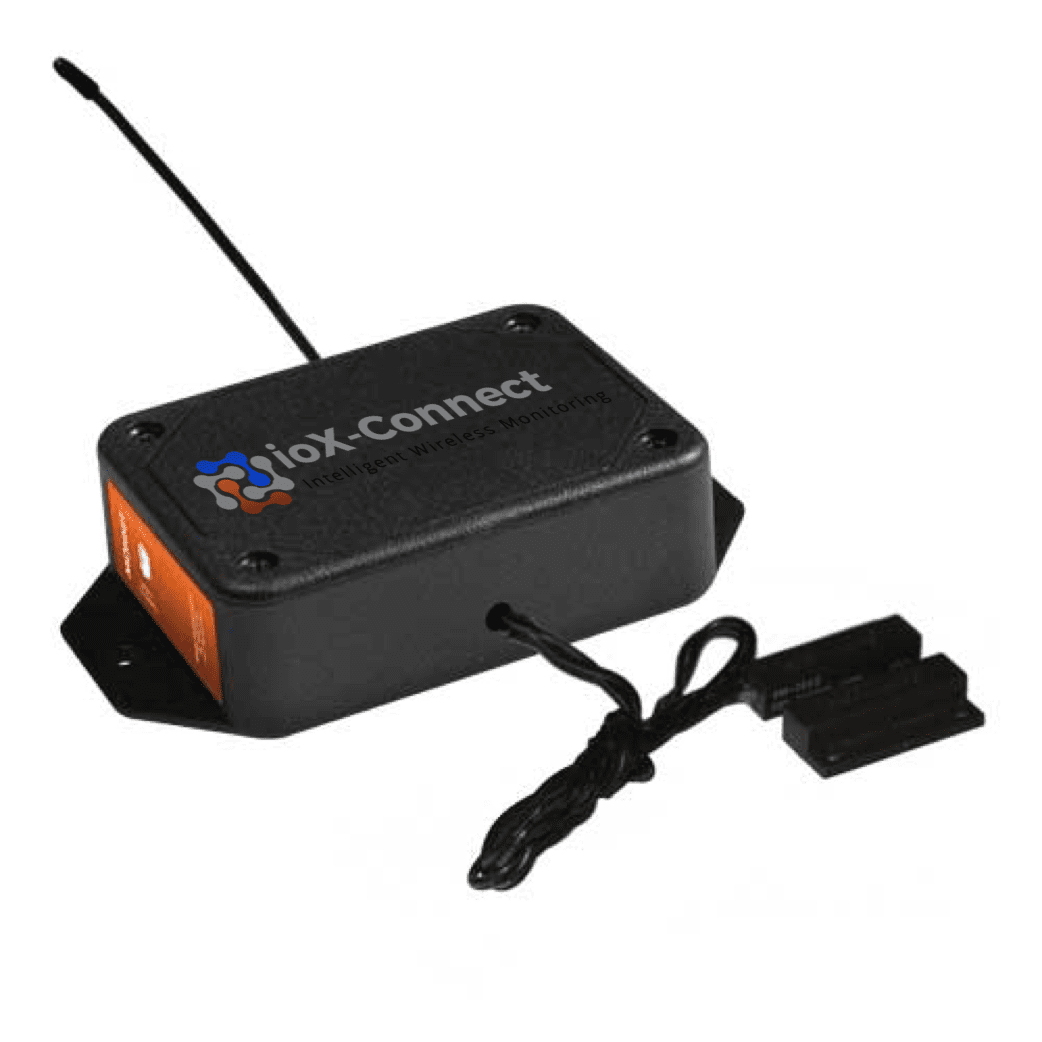

Wireless Open-Closed Sensor - AA Battery Powered
The ioX Open/ Close sensor uses an external magnetic switch and trigger magnet to detect status—when the magnets meet, a door or window is closed. The sensor can also be configured via ioX-Connect software to only send notifications during specific dayparts (such as after-hours). Data also sheds light on access patterns—a boon for the foodservice, healthcare, and hospitality sectors etc.

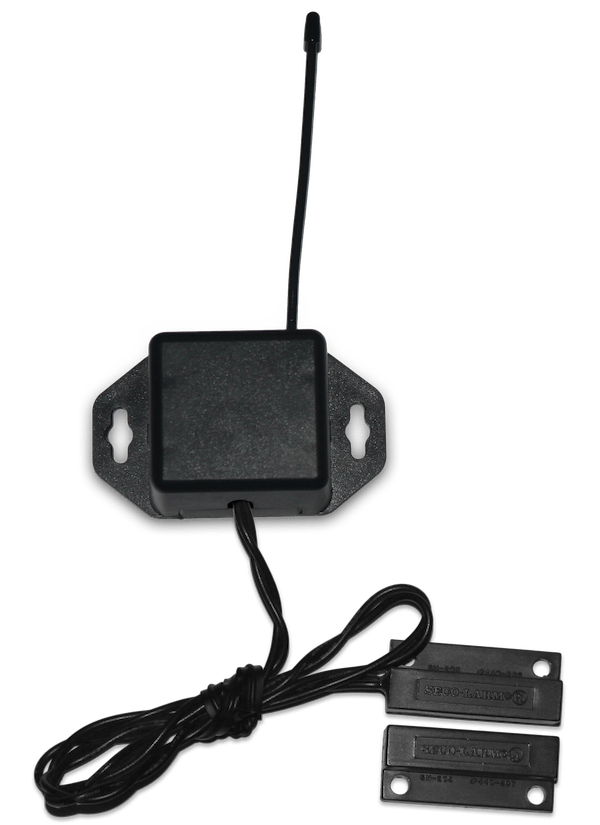

Wireless Open-Closed Sensor - Coin Cell Powered
The ioX Open/ Close sensor uses an external magnetic switch and trigger magnet to detect status—when the magnets meet, a door or window is closed. The sensor can also be configured via ioX-Connect software to only send notifications during specific dayparts (such as after-hours). Data also sheds light on access patterns—a boon for the foodservice, healthcare, and hospitality sectors etc.
- Enterprise AA-battery powered: Our most popular type is ideal for typical commercial & enterprise environments, such as server rooms. A 1,200+ ft. range readily covers most facilities.
- Commercial CC-battery powered: Compact sensor is great for space-restricted areas such as control cabinets or cold storage.
- Industrial: Sensor's weatherproof, NEMA-rated enclosure withstands demanding indoor/outdoor use, e.g., warehouses & production facilities.
Connection Type | Wireless | ||
---|---|---|---|
Sensor Type | Commercial (CC Battery) | Enterprise (AA Battery) | Industrial |
Sensor Housing Dimensions1 |
2.0" (50.8 mm) Width 0.875" (22.225 mm) Height 1.125" (28.575 mm) Depth |
4.375" (111.125 mm) Width 2.470" (62.738 mm) Height 1.111" (28.219 mm) Depth |
3.701" (94.0 mm) Width 2.316" (58.84 mm) Height 1.378" (35.0 mm) Depth |
Gateway Required? | Yes | Yes | Yes |
Range2 | 1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
Battery Required? | Yes Coin Cell (CR123) |
Yes Two AA's |
Yes 1800mAH Industrial |
Battery Life3 | Up to 2 Years | Up to 10 Years | Up to 5 Years |
Internet Required for Data Transmission?4 | No | No | No |
Outdoor Use or Wet Conditions? | No | No | Yes (IP65 Nema Rated Housing) |
Works with Other ioX-Connect Sensors? | Yes | Yes | Yes |
1Dimensions for standard housing sizes. For sensors in non-typical housings, please refer to their data sheets.
2Actual range may vary depending on environment.
3Battery life is determined by sensor reporting frequency and other variables.
4This is transmission from sensor to gateway. All gateways will need active connection for transmission to ioX-Connect. Gateway transmission can be Ethernet or Cellular.
Exceptional Value
Industry leading wireless sensor range, offering multiple installation options
Best in class power management technology allows for greater sensor battery life.
With so many different sensor types, ioX wireless sensors gives you options to monitor multiple scenarios.
Be up and running within 15 minutes. Easy plug-and-play IoT solution.
Your all-in-one wireless monitoring solution
Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below.
ioX-Connect's Wireless Sensor communication can reach 1,200+ feet through 12+ walls non-line-of-sight.
You can connect up to 50 different ioX Wireless Sensors to 1 gateway. Gateways can also serve as range extenders if you have a big site where sensors will be installed more than 1,000 ft apart.
The life span of the battery is dependent on several factors, including:
- How frequently does the sensor transmit data (Heartbeat)
- How far the sensor is from the wireless gateway
- The obstructions that can cause difficulty in sending data (farther distance and obstructions require that the radio operate at longer intervals to send and receive data)
ioX-Connect Sensors and Gateways provide automated data logging. Our sensors can store up to 4,000 messages if the gateway connection is lost (non-volatile flash, persists through the power cycle). For 10-minute Heartbeat settings, this accounts for approximately 22 days of messages or readings. For 2-hour Heartbeat settings, our sensors can log up to 266 days of readings.
Plus, our gateways can save up to 50,000 sensor messages if its connection is lost. Our sensors and gateways can log all this data before sending it to the ioX-Connect platform—our sensor management and monitoring software—for cloud storage, trending, and analysis.
ioX-Connect wireless products use Encrypt-RF bank-level security, featuring a 256-bit exchange to establish a globally unique key and an AES-128 CTR for all data messages. Security is maintained at all communication points from sensor to gateway, gateway to software, and back again.
ioX-Connect's standard wireless products use several features to help protect sensor data in transit. The proprietary sensor protocol uses very low transmit power and requires specialized radio equipment to operate. Typical wireless devices that run on non-proprietary communication protocols (Wi-Fi, Bluetooth, Zigbee) operate using different frequency bands, so you can't use them to eavesdrop on the radio communications from the ioX-Connect family of sensors. In addition, we use a robust packet tampering evaluation routine to ensure that traffic isn't altered between the sensors and the gateways. This enables us to check for well-formed data packets that only originate from ioX-Connect enabled devices. We have algorithms that protect against spoofing and re-transmission of wireless data packets to safeguard data further.
Absolutely! This is what sets ioX-Connect apart from all other IoT solutions out there. ioX-Connect's Analytics module allows you to combine data from different sources not just sensors to create cross functional reports, analyze and trend sensor data, interact with your historical data and collaborate across departments thereby giving you more insights into your business/operations.
Yes. The ioX-Connect platform can be fed with data from external sensors provided we can retrieve the external sensor data through some service like an API. Please reach out to us at: sales@iox-connect.com for more detail on integration capabilities.
