Effortless voltage monitoring with ioX-Connect Wireless Interface Volt Meters

Reliable Voltage Monitoring for Industrial and IoT Applications

Wireless Voltage Interface Meter
Precision Voltage Monitoring Simplified

Remotely Monitor Power Systems to track and react to operational voltage fluctuation issues in real time

Unlock the potential of your IoT and industrial applications with the ioX-Connect Wireless Interface Volt Meters. Designed to provide accurate voltage monitoring, these versatile sensors are ideal for a range of applications, including battery health monitoring, renewable energy systems, and industrial machinery. With options available in commercial, enterprise, and industrial-grade enclosures, our voltage meters offer reliable performance in any environment.

Download Catalog
Buy Now
Precision Voltage Monitoring Simplified

How It Works and Benefits

The ioX-Connect Wireless Interface Volt Meters measure the potential difference (voltage) between two electrical points, ensuring precise and reliable data for various applications. These sensors are designed to alert you if voltage levels deviate from your preset limits, allowing for proactive management and maintenance.

How it Works Simple



Accurate Voltage Monitoring

Measure DC voltage up to 5V or 10V with high resolution and accuracy, ensuring reliable data for critical applications.

Configurable Alerts

Set customizable thresholds to receive alerts via email, text, or call when voltage levels go beyond specified limits, enabling timely interventions.

Versatile Applications

Suitable for monitoring battery health, transducer measurements, electrical motors, and more, making it an essential tool for various industries.

Easy Integration

Mount-and-monitor sensors available in compact commercial units, conventional enterprise enclosures, and weatherproof industrial-grade models, ensuring seamless integration into your systems.

Remote Monitoring

Utilize the ioX-Connect platform for real-time data access and analysis, enhancing your IoT capabilities and operational efficiency.

Key Features of the ioX-Connect Wireless Interface Volt Meters

The ioX-Connect Wireless Interface Volt Meters are packed with advanced features that make them an indispensable tool for industrial and IoT applications. From high accuracy measurements to configurable alerts, these sensors are designed to meet the demands of modern monitoring solutions.

  • Measurement Range: Monitor voltage levels with a range of 0 to 5 VDC or 0 to 10 VDC, suitable for various applications.
  • High Resolution: With a resolution of 1 mV, our voltage meters provide detailed and precise measurements.
  • Accuracy: Uncalibrated accuracy of ± 2.0% of reading ± 0.002 VDC and calibrated accuracy of ± 0.5% of reading ± 0.002 VDC ensure reliable data.
  • Configurable Thresholds: Set critical condition monitoring thresholds to receive instant alerts when voltage deviates from the norm.
  • Durable Design: Available in ultra-compact commercial units, conventional enterprise devices, and weatherproof industrial-grade models, our sensors are built to last.
  • Real-Time Data Access: Connect to the ioX-Connect platform for real-time monitoring, data logging, and comprehensive analysis.
Data Sheets:

 - Wireless Volt Meter Data Sheet

Related Product Documents:

 - 0-20mA Current Meter Data Sheet

OTHER DOCUMENTS:

- Sensors Overview

- ioX Wireless Sensor Catalog



Wireless Volt Meter Applications and Use Cases

Versatile Solutions for Diverse Applications

The ioX-Connect Wireless Interface Volt Meters are designed to meet the needs of various industries and applications. From monitoring battery health to ensuring the efficiency of industrial machinery, these sensors provide critical data to enhance operational performance.

  • Battery Health Monitoring: Ensure the longevity and performance of batteries by monitoring voltage levels, detecting potential issues before they escalate.
  • Renewable Energy Systems: Optimize the performance of solar panels and other renewable energy sources by accurately measuring voltage output and ensuring efficient energy conversion.
  • Industrial Machinery: Monitor the voltage levels of machinery and electrical motors to prevent downtime and maintain optimal performance.
  • Transducer Measurement: Measure the output of transducers accurately, ensuring precise data collection for various industrial processes.
  • Electrical Systems: Maintain the health and efficiency of electrical systems by monitoring voltage levels, identifying potential issues early, and ensuring reliable operation.

The ioX-Connect Wireless Interface Volt Meters offer reliable and accurate voltage monitoring for a wide range of applications. By integrating these sensors into your systems, you can ensure operational efficiency, prevent potential issues, and optimize performance. Explore our range of voltage meter and interface meters today and take your monitoring solutions to the next level.

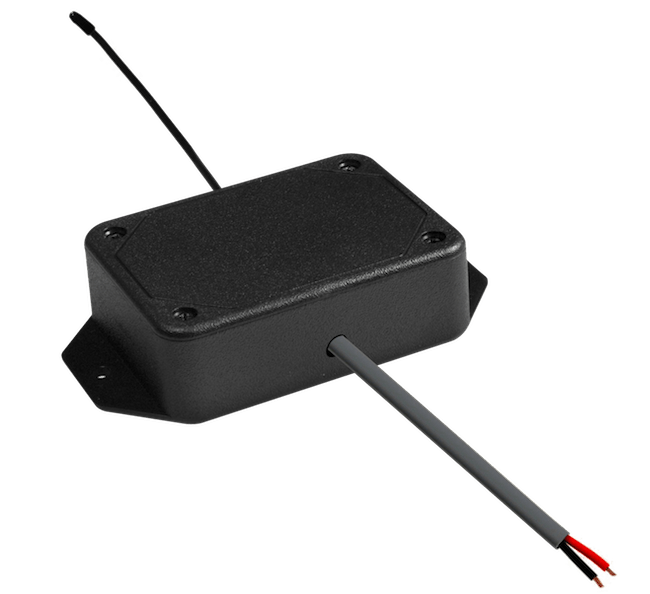

  • Enterprise AA-battery powered: Our most popular type is ideal for typical commercial & enterprise environments, such as server rooms. A 1,200+ ft. range readily covers most facilities.
  • Commercial CC-battery powered: Compact sensor is great for space-restricted areas such as control cabinets or cold storage.

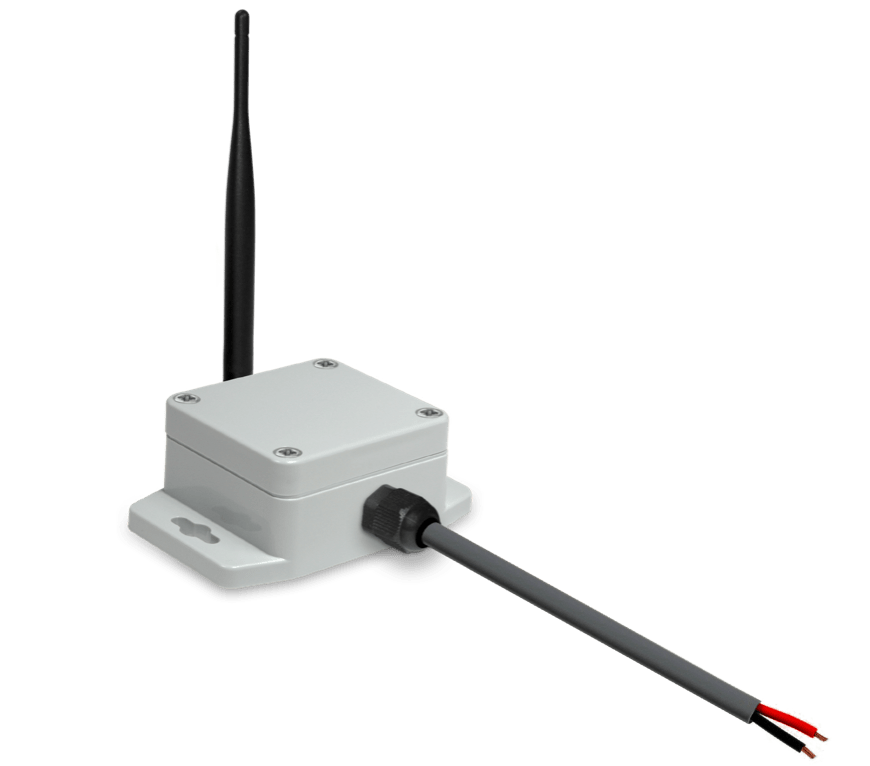

  • Industrial: Sensor's weatherproof, NEMA-rated enclosure withstands demanding indoor/outdoor use, e.g., warehouses & production facilities.
Connection Type Wireless
Sensor Type Commercial (CC Battery) Enterprise (AA Battery) Industrial
Sensor Housing
Dimensions1		 2.0" (50.8 mm) Width
0.875" (22.225 mm) Height
1.125" (28.575 mm) Depth		 4.375" (111.125 mm) Width
2.470" (62.738 mm) Height
1.111" (28.219 mm) Depth		 3.701" (94.0 mm) Width
2.316" (58.84 mm) Height
1.378" (35.0 mm) Depth
Gateway Required? Yes Yes Yes
Range2 1200+ Feet
12+ Walls		 1200+ Feet
12+ Walls		 1200+ Feet
12+ Walls
Battery Required? Yes
Coin Cell (CR123)		 Yes
Two AA's		 Yes
1800mAH Industrial
Battery Life3 Up to 2 Years Up to 10 Years Up to 5 Years
Internet Required for Data Transmission?4 No No No
Outdoor Use or Wet Conditions? No No Yes (IP65 Nema Rated Housing)
Works with Other ioX-Connect Sensors? Yes Yes Yes



1Dimensions for standard housing sizes. For sensors in non-typical housings, please refer to their data sheets.
2Actual range may vary depending on environment.
3Battery life is determined by sensor reporting frequency and other variables.
4This is transmission from sensor to gateway. All gateways will need active connection for transmission to ioX-Connect. Gateway transmission can be Ethernet or Cellular.

Commercial Sensor Enclosure:

Commercial Sensor Enclosure Drawing

Enterprise Sensor Coin Cell Replace Drawing

Enterprise Sensor Enclosure:

Enterprise Sensor Enclosure Drawing

Industrial Sensor Enclosure:

Industrial Sensor Enclosure and Antenna Drawing



FAQs

Your all-in-one wireless monitoring solution

Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below.

ioX-Connect's Wireless Sensor communication can reach 1,200+ feet through 12+ walls non-line-of-sight.

You can connect up to 50 different ioX Wireless Sensors to 1 gateway. Gateways can also serve as range extenders if you have a big site where sensors will be installed more than 1,000 ft apart.

The life span of the battery is dependent on several factors, including:

  • How frequently does the sensor transmit data (Heartbeat)
  • How far the sensor is from the wireless gateway
  • The obstructions that can cause difficulty in sending data (farther distance and obstructions require that the radio operate at longer intervals to send and receive data)

ioX-Connect Sensors and Gateways provide automated data logging. Our sensors can store up to 4,000 messages if the gateway connection is lost (non-volatile flash, persists through the power cycle). For 10-minute Heartbeat settings, this accounts for approximately 22 days of messages or readings. For 2-hour Heartbeat settings, our sensors can log up to 266 days of readings.

Plus, our gateways can save up to 50,000 sensor messages if its connection is lost. Our sensors and gateways can log all this data before sending it to the ioX-Connect platform—our sensor management and monitoring software—for cloud storage, trending, and analysis.

ioX-Connect wireless products use Encrypt-RF bank-level security, featuring a 256-bit exchange to establish a globally unique key and an AES-128 CTR for all data messages. Security is maintained at all communication points from sensor to gateway, gateway to software, and back again.

ioX-Connect's standard wireless products use several features to help protect sensor data in transit. The proprietary sensor protocol uses very low transmit power and requires specialized radio equipment to operate. Typical wireless devices that run on non-proprietary communication protocols (Wi-Fi, Bluetooth, Zigbee) operate using different frequency bands, so you can't use them to eavesdrop on the radio communications from the ioX-Connect family of sensors. In addition, we use a robust packet tampering evaluation routine to ensure that traffic isn't altered between the sensors and the gateways. This enables us to check for well-formed data packets that only originate from ioX-Connect enabled devices. We have algorithms that protect against spoofing and re-transmission of wireless data packets to safeguard data further.

Absolutely! This is what sets ioX-Connect apart from all other IoT solutions out there. ioX-Connect's Analytics module allows you to combine data from different sources not just sensors to create cross functional reports, analyze and trend sensor data, interact with your historical data and collaborate across departments thereby giving you more insights into your business/operations.

Yes. The ioX-Connect platform can be fed with data from external sensors provided we can retrieve the external sensor data through some service like an API. Please reach out to us at: sales@iox-connect.com for more detail on integration capabilities.
