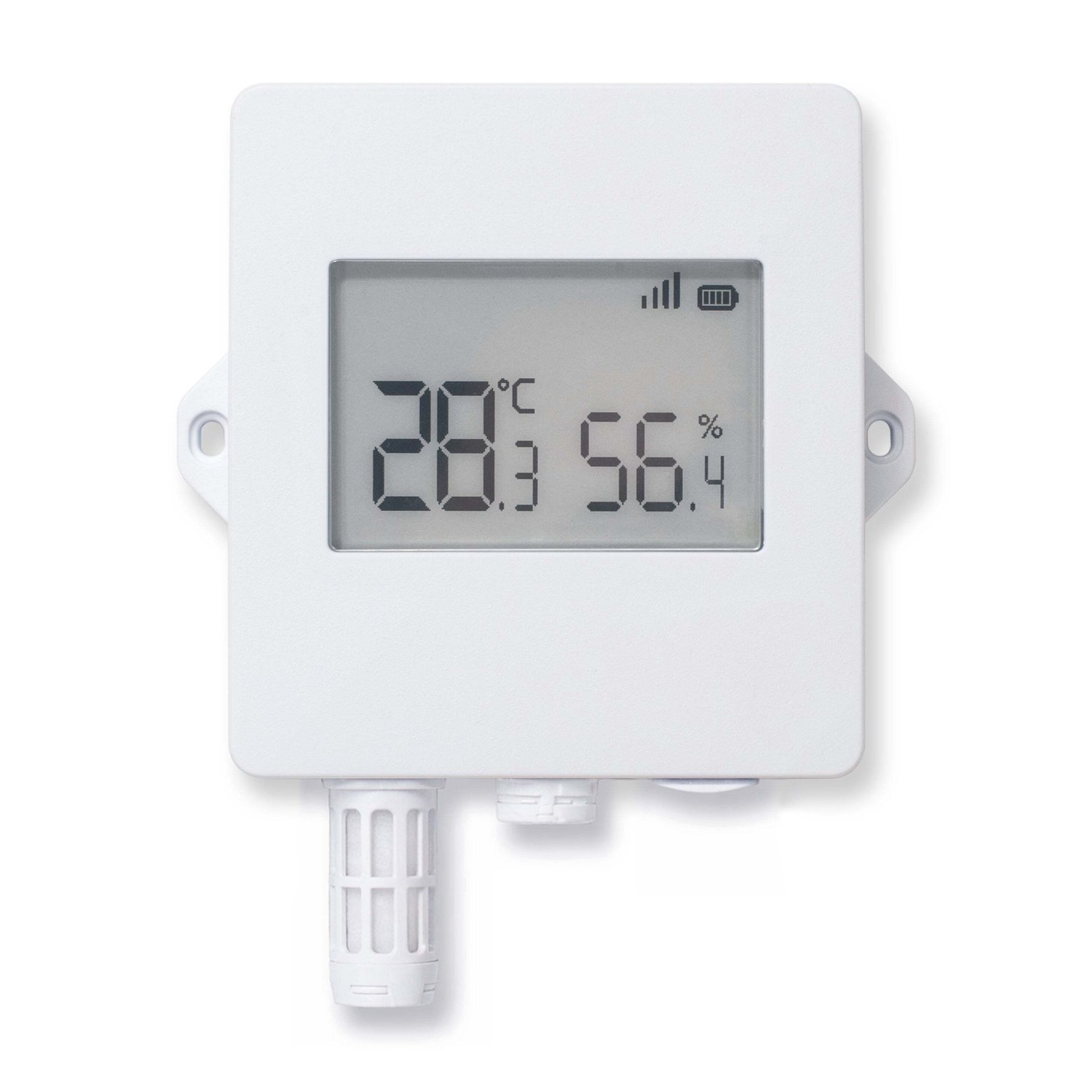

LoRaWAN Temperature & Humidity Display Sensor
The ioX-Connect LoRaWAN Temperature & Humidity Display Sensor measures room temperature and relative humidity and shows both on a 2.7 in digital display, so anyone walking past can read conditions at a glance. Every reading is also sent over LoRaWAN to ioX-Pulse, where you see live values and full history on your dashboards and get an alert by email, SMS or in-app notification when a room drifts outside the limits you set.
Inside the probe housing is a factory-calibrated Sensirion SHT31 sensor with ±0.2 °C (±0.4 °F) temperature accuracy, protected by an anti-condensation cover for stable readings over time. An 8,000 mAh battery runs the sensor for up to 5 years, depending on how often it reports, and if the network drops, the sensor stores its readings and sends them once the connection is back, so your history has no gaps.
Key Specifications
- Display: 2.7 in screen showing temperature, humidity, signal and battery; °C or °F set remotely
- Temperature: ±0.2 °C (±0.4 °F) accuracy, 0.1 °C (0.2 °F) resolution
- Humidity: 0 to 99.9 %RH, ±4 %RH from 20 to 95 %RH
- Operating range: 0 to 50 °C (32 to 122 °F)
- Connectivity: LoRaWAN 1.0.3 Class A, OTAA; US915 for the United States, other bands on request
- Battery: 8,000 mAh Li-SOCl2, up to 5 years depending on reporting interval
- Reporting: Every 20 minutes by default; on-demand reading at the press of a button
- Size: 87 x 95 x 30 mm (3.4 x 3.7 x 1.2 in), wall mount with two screw tabs
Why this sensor?
Most wireless sensors are invisible: the data lives on a screen somewhere else, and the people in the room have to take it on trust. This sensor puts the reading on the wall where staff, students, customers and visitors can see it, and sends the same reading to ioX-Pulse so you can watch every room from one dashboard and act before a complaint or a spoiled delivery tells you something is wrong.
Best For:
- Offices, meeting rooms and classrooms where comfort affects people's work
- Warehouses, stockrooms and storage areas where staff check conditions on site
- Clinics, pharmacies and medical supply rooms that need visible, logged conditions
- Retail stores, hotels and public spaces that must stay comfortable for customers
- Public restrooms, locker rooms and facilities where humidity drives ventilation and cleaning
- Server closets and equipment rooms where a quick look at the wall saves a trip to a laptop
How It Works:
- Mount: Fix the sensor to the wall with the two screw tabs, at eye level so the display is easy to read.
- Activate and join: Press and hold the button for 5 seconds. The sensor wakes from its shipping sleep mode and joins your LoRaWAN gateway.
- Set your limits: In ioX-Pulse, choose the temperature and humidity limits for each room and who gets notified by email, SMS or in-app alert.
- Read it anywhere: Staff read the display in the room; you see live values, history and alerts for every room in ioX-Pulse.
Readable at a Glance
The 2.7 in digital display shows temperature, humidity, signal strength and battery level. Switch between °C and °F remotely, or turn the readings off where you would rather not show them.
Accurate, Stable Readings
A factory-calibrated Sensirion SHT31 sensor delivers ±0.2 °C (±0.4 °F) temperature accuracy with drift of less than 0.03 °C (0.05 °F) per year, inside an anti-condensation probe housing.
Up to 5 Years on One Battery
An 8,000 mAh Li-SOCl2 battery and a 5 µA sleep current keep the sensor running for up to 5 years at typical reporting intervals. Battery level shows on the display and reports to ioX-Pulse, so replacements are planned rather than discovered.
No Gaps in Your History
If the network is unavailable, the sensor stores its readings and sends them when the connection returns. Built-in temperature and humidity alarms flag a reading outside your thresholds.
Devices Commonly Deployed with This Temperature & Humidity Sensor
The LoRaWAN Temperature & Humidity Display Sensor is often deployed alongside:
LoRaWAN Gateways
Receive readings from every sensor in the building and forward them to ioX-Pulse. One gateway typically covers a whole building.
Commercial Temperature & Humidity Sensor
A compact sensor for rooms that need monitoring but no display, reporting into the same dashboards and alerts.
Enterprise Temperature, Humidity & PIR Sensor
Adds motion detection, so you can see which rooms are in use alongside their conditions.
Industrial Temperature & Humidity Sensor
For harsher spaces and wider temperature ranges than the display sensor's 0 to 50 °C (32 to 122 °F).
