Reliable LoRaWAN® to Ethernet Connectivity for Indoor IoT Deployments

LoRaWAN Indoor Ethernet Gateway

LoRaWAN Indoor Ethernet Gateway

Enterprise-Ready Indoor LoRaWAN Gateway

A high-performance, plug-and-play Ethernet gateway designed to reliably bridge LoRaWAN sensor networks to the ioX-Connect platform.

The ioX-Connect LoRaWAN Indoor Ethernet Gateway acts as the central communication hub between your LoRaWAN sensors and your IP network. Engineered for reliability and ease of deployment, it securely forwards data from LoRaWAN devices to the ioX-Connect platform using a standard Ethernet connection—ideal for indoor commercial and industrial environments.

Key Specifications (At a Glance):
  • LoRaWAN Version: v1.0.3, Class A
  • Concentrator: Semtech SX1302/03
  • Connectivity: Ethernet (USB-C power input)
  • Frequency Bands: US915, EU868, AS923, AU915, KR920, IN865, RU864
  • RF Output Power: Up to 27 dBm
  • RX Sensitivity: Down to –140 dBm
  • Operating Temperature: –40 °C to +85 °C (–40 °F to +185 °F)
  • Installation: Indoor environments
Download our Solutions Catalog
Buy Online

Why This Gateway?

A reliable LoRaWAN deployment depends on a stable and high-performance gateway. The ioX-Connect Indoor Ethernet Gateway is purpose-built for indoor environments where Ethernet connectivity is available and reliability is critical.

  • This gateway is optimized for:
  • High-density indoor sensor networks
  • Mission-critical data delivery
  • Plug-and-play enterprise deployments
  • Long-term, low-maintenance operation
How It Works
  1. Wireless Sensors Transmit Data
    LoRaWAN sensors send encrypted uplink messages over long range to the indoor gateway.
  2. Gateway Receives & Processes LoRaWAN Traffic
    The high-performance concentrator receives, demodulates, and processes multiple sensor transmissions simultaneously.
  3. Ethernet Backhaul to IP Network
    Sensor data is forwarded over a standard Ethernet connection to the ioX-Connect platform.
  4. Online Monitoring & Alerts
    Users access real-time data, dashboards, and alerts from anywhere via the ioX-Connect platform.

IoT Platform | ioX-Connect

High-Performance LoRaWAN Concentrator

Powered by a Semtech SX1302/03 concentrator for efficient multi-channel packet processing.


Plug-and-Play Ethernet Connectivity

Simple Ethernet backhaul enables fast deployment without cellular plans or complex setup.


Pre-Configured for Regional Compliance

Ships pre-configured for regional LoRaWAN frequency bands, reducing installation time.

Enterprise-Grade Reliability

Designed for continuous indoor operation across commercial and industrial facilities.

Devices Commonly Deployed with LoRaWAN Gateway

Devices typically deployed alongside our LoRaWAN Ethernet Gateway:

LoRaWAN temperature and Humidity Sensor

LoRaWAN Temperature & Humdidity Sensors

Monitor ambient temperature and humidity to support climate control, compliance, and indoor environmental quality initiatives.

View

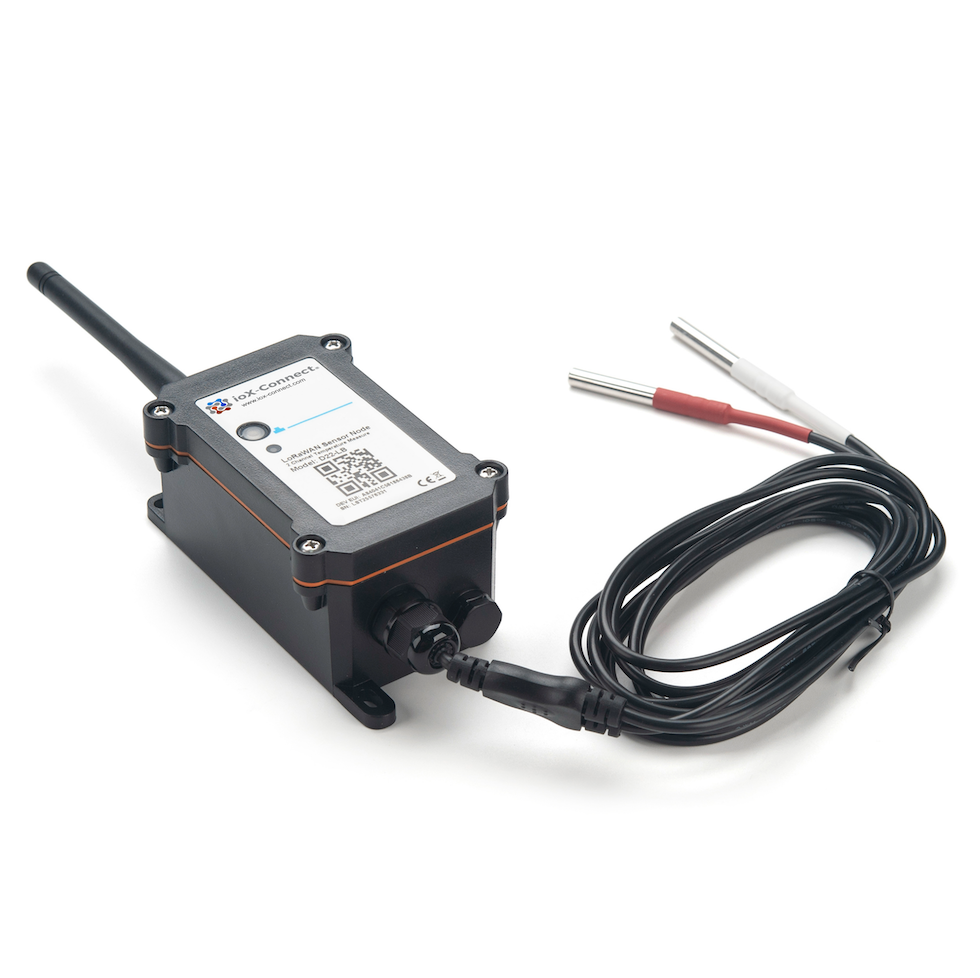

LoRaWAN Industrial Temperature Sensor

LoRaWAN Temperature Sensors

Provide reliable temperature monitoring across indoor and industrial environments to detect overheating, freezing, or abnormal operating conditions.

View
LoRaWAN Water Leak Detection Sensors

LoRaWAN Water Leak Sensors

Detect the presence of water at critical locations and trigger immediate alerts to prevent damage and unplanned downtime.

View
LoRaWAN Enterprise & Humidity Sensor with PIR_Side-1

LoRaWAN Motion & Occupancy Sensors

Detect movement and occupancy activity to support space utilization insights, security awareness, and energy optimization strategies.

View

Download Device Data Sheet

Category Specification Details
LoRaWAN Protocol LoRaWAN v1.0.3, Class A
  Concentrator 1 × SX1302/03 + 2 × 1250 LoRa transceivers
Frequency Supported Bands US915, EU868, AS923, AU915, KR920, IN865, RU864
Radio Performance Max Output Power 27 dBm
  RX Sensitivity –140 dBm
Networking Backhaul Ethernet
Power Input USB Type-C, 5V / 2A
Physical Dimensions 12 × 12 × 3 cm
  Weight 138 g
Environment Operating Temp –40 °C to +85 °C
Management Configuration Remote via ioX-Connect
Maintenance Firmware Updates Wireless OTA updates
  • Reliable indoor LoRaWAN coverage
  • Supports high sensor density deployments
  • No cellular subscriptions required
  • Fast installation with minimal configuration
  • Scalable gateway foundation for growing IoT networks

Commercial Buildings
Centralized gateway for indoor environmental monitoring.

Manufacturing & Industrial Facilities
Reliable backhaul for production-floor sensors.

Warehouses & Distribution Centers
Stable indoor connectivity for large sensor networks.

Healthcare & Education Facilities
Secure and dependable LoRaWAN infrastructure.

Multi-Room & Multi-Floor Deployments
Single gateway supporting sensors across wide indoor areas.

FAQs

Frequently Asked Questions about our LoRaWAN Ethernet Gateway

Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below. You can also check out our content library for more information and content on wireless sensors and IoT.

No. This gateway uses Ethernet for backhaul and does not require a cellular plan.

No. It is designed exclusively for LoRaWAN-based devices.
Yes. Gateways ship pre-configured for regional LoRaWAN frequency bands.

Yes. It is designed to handle high-density LoRaWAN sensor deployments.

Yes. Configuration and firmware updates are managed remotely through the ioX-Connect platform.

No. This model is intended for indoor environments only.
