Cellular Provider Information Request
The ioX IoT Gateway integrates a multi-mode LPWA modules supporting LTE Cat M1 and Cat NB2. It complies with 3GPP Release 14 and enable cellular data-only communications for this gateway. The gateway defaults to automatic cellular connection settings. These settings have been tested to work with the following cellular providers: AT&T (USA and Intl Support), Hologram (Global SIM), Telenor (Global SIM), Telstra (Austrailia), Sasktel (Canada), and Verizon (USA).
With the combination of both Cellular and Ethernet interfaces, the IoT Gateway’s Cellular settings can be customized to work with a cellular provider not automatically supported by either the gateway or the cellular module firmware. This guide illustrates these settings and how to enable that gateway to work on a previously unsupported network. By setting the “Carrier Preference” to “Manual” in either the ioX-Connect Server Gateway Settings View or the Local HTTP Settings View (see below), additional configuration options become available for customization.
To customize any of the cellular settings in “Manual Mode”, the following questions must be answered by your cellular provider:
- Does the cellular provider have support for LTE-M (CAT-M1) or NB-IoT (CAT-NB2)?
- If yes, do you use specific SIMs with these technologies?
- What LTE-M Cellular Bands should I use at my location?
- None if not used, or specify?
- What NB-IoT (NB2) Cellular Bands should I use at my location?
- None if not used, or specify?
- What APN should be used with this SIM/Network?
- Does the network support "unspecified" or "network provided" APNs?
- Does this SIM support Authentication?
- If so,
- What is the Type: PAP or CHAP?
- What is the Username?
- What is the Password?
- If so,

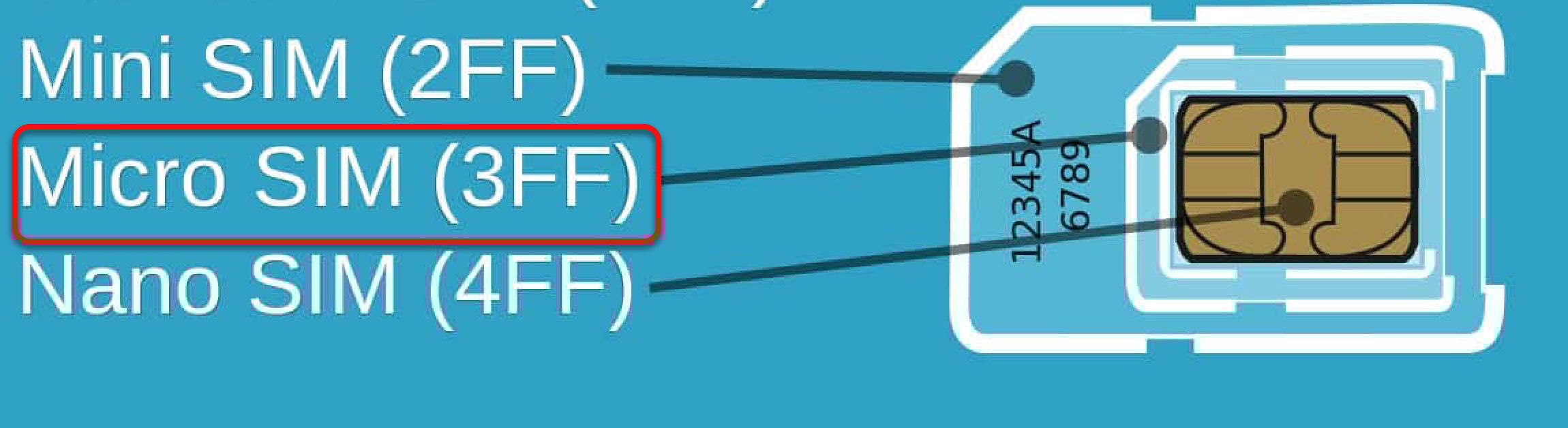

If asked by your cellular carrier what the size of the SIM card should be, the gateway currently only supports a Micro SIM. See below image for reference.
Country/Region | Operator | LTE-M (CAT-M1) | NB-IoT (CAT-NB2) |
---|---|---|---|
Argentina | Claro | X | X |
Argentina | MNO Personal | X | X |
Argentina | Movistar | X | X |
Argentina | Personal | X | X |
Australia | Telstra | X | X |
Australia | Vodafone | X | X |
Australia | Optus | X | X |
Austria | A1 | X | X |
Austria | T-Mobile (Magenta) | X | X |
Bangladesh | Grameenphone | X | X |
Belarus | A1 | X | X |
Belarus | Velcom | X | X |
Belgium | BASE (Telenet) | X | X |
Belgium | Proximus | X | X |
Belgium | Orange | X | X |
Brazil | Claro | X | X |
Brazil | Vivo | X | X |
Brazil | Telecom Italia/TIM | X | X |
Canada | Rogers | X | X |
Canada | Bell | X | X |
Canada | Telus | X | X |
Chile | Claro | X | X |
Chile | Movistar | X | X |
Chile | Entel | X | X |
China | China Mobile | X | X |
China | China Telecom | X | X |
China | China Unicom | X | X |
China(Hong Kong) | Three | X | X |
China(Hong Kong) | China Mobile | X | X |
China(Hong Kong) | SmarTone | X | X |
China(Taiwan) | APTG | X | X |
China(Taiwan) | Chunghwa | X | X |
China(Taiwan) | FarEasTone | X | X |
China(Taiwan) | Taiwan Mobile | X | X |
Colombia | Claro | X | X |
Colombia | Movistar | X | X |
Colombia | Telefonica | X | X |
Croatia | A1 | X | X |
Croatia | T-Mobile (DT) | X | X |
Czech | Vodafone | X | X |
Denmark | Telenor | X | X |
Denmark | Telia | X | X |
Denmark | TDC | X | X |
Estonia | Telia | X | X |
Estonia | Elisa | X | X |
Finland | Telia | X | X |
Finland | DNA | X | X |
Finland | Elisa | X | X |
France | Bouygues Telecom | X | X |
France | Orange | X | X |
France | SFR | X | X |
Germany | Deutsche Telekom | X | X |
Germany | Telefónica | X | X |
Germany | Vodafone | X | X |
Greece | Vodafone | X | X |
Greece | T-Mobile (Cosmote) | X | X |
Hungary | MVM Group | X | X |
Hungary | T-Mobile | X | X |
Hungary | Vodafone | X | X |
India | Reliance Jio | X | X |
Indonesia | Telkomsel | X | X |
Indonesia | XL Axiata | X | X |
Ireland | Vodafone | X | X |
Italy | Vodafone | |
X |
Italy | Telecom Italia/TIM | |
X |
Japan | SoftBank | X |
X |
Japan | KDDI | X |
X |
Japan | NTT DOCOMO | X |
X |
Kazakstan | KCELL | |
X |
Kenya | SafariCom | |
X |
Latvia | Bite | |
X |
Latvia | LMT | X |
X |
Latvia | Tele2 | |
X |
Lithuania | Bite | |
X |
Lithuania | Telia | |
X |
Lithuania | Tele2 | |
X |
Malaysia (6 Cities) | Maxis | |
X |
Malta | Vodafone | |
X |
Mexico | ALTAN | X |
X |
Mexico | AT&T | X |
X |
Mexico | Telcel | X |
X |
Mexico | Movistar | X |
X |
Mexico | América Móvil | X |
X |
Netherlands | T-Mobile (DT) | X |
X |
Netherlands | Vodafone | X |
X |
Netherlands | KPN | X |
X |
New Zealand | Vodafone | X |
X |
New Zealand | Spark | X |
X |
Norway | Telenor | X |
X |
Norway | Telia | |
X |
Peru | Claro | X |
X |
Peru | Movistar | X |
X |
Peru | Entel | X |
X |
Poland | T-Mobile (DT) | |
X |
Portugal | Altice | |
X |
Portugal | Vodafone | |
X |
Portugal | NOS | |
X |
Romania | Orange | X |
X |
Romania | Vodafone | |
X |
Russia | MegaFon | |
X |
Russia | MTS | |
X |
Saudi Arabia | Zain | |
X |
Saudi Arabia | Mobily | |
X |
Saudi Arabia | STC | |
X |
Serbia | Vip Mobile (A1) | |
X |
Singapore | M1 | |
X |
Singapore | StarHub | |
X |
Singapore | SingTel | X |
X |
Slovakia | T-Mobile (Slovakia Telecom) | |
X |
Slovenia | A1 | |
X |
Slovenia | Telekom Slovenije | |
X |
South Africa | Vodafone | |
X |
South Africa | Vodacom | |
X |
South Korea | KT | X |
X |
South Korea | LGU+ | X |
X |
South Korea | SKT | X |
X |
Spain | Orange | X |
X |
Spain | Telefónica | X |
X |
Spain | Vodafone | |
X |
Sri Lanka | Dialog Axiata | X |
X |
Sri Lanka | Mobitel | |
X |
Sweden | Telia | X |
X |
Sweden | Telenor | X |
|
Switzerland | Swisscom | X |
X |
Thailand | AIS | X |
X |
Thailand | TRUE | |
X |
Thailand | DTAC | |
X |
Turkey | Turkcell | X |
X |
Turkey | Vodafone | |
X |
UAE | Etisalat | X |
X |
UAE | DU | |
X |
Ukraine | Kyivstar | |
X |
Ukraine | Vodafone | |
X |
United Kingdom | O2 Telefonica | X |
|
United Kingdom | Vodafone | |
X |
Uruguay | Antel | X |
X |
US | USCC | X |
|
USA | AT&T | X |
X |
USA | Verizon | X |
X |
USA | T-Mobile | |
X |
USA | Sprint | X |
|
