Wireless Motion Detection Sensors
Enhanced Motion Detection Technology - Secure and Monitor with Ease
Experience seamless installation and monitoring in just 15 minutes with our advanced motion sensors. Whether you're safeguarding sensitive areas or monitoring animal safety, our sensors provide real-time alerts directly to your phone or email. With a detection range of up to 4.5 meters (15 feet), our devices are perfect for tracking movement in both restricted and open spaces.
Our versatile motion sensors are designed to meet diverse needs. Available in compact coin cell (CC) battery versions, enterprise-grade AA battery models, Wi-Fi connected, or Power over Ethernet (PoE) options, we cater to all scales of operations. Each model is engineered to provide optimal coverage:
- ioX-Connect Standard Motion Sensors: These devices offer a software-adjustable detection range of 9, 12, or 15 feet with an 80° field of view, perfect for general motion detection.
- ioX-Connect Wide-Angle Motion Sensor: Designed for broader coverage, this sensor offers a 110° viewing angle.

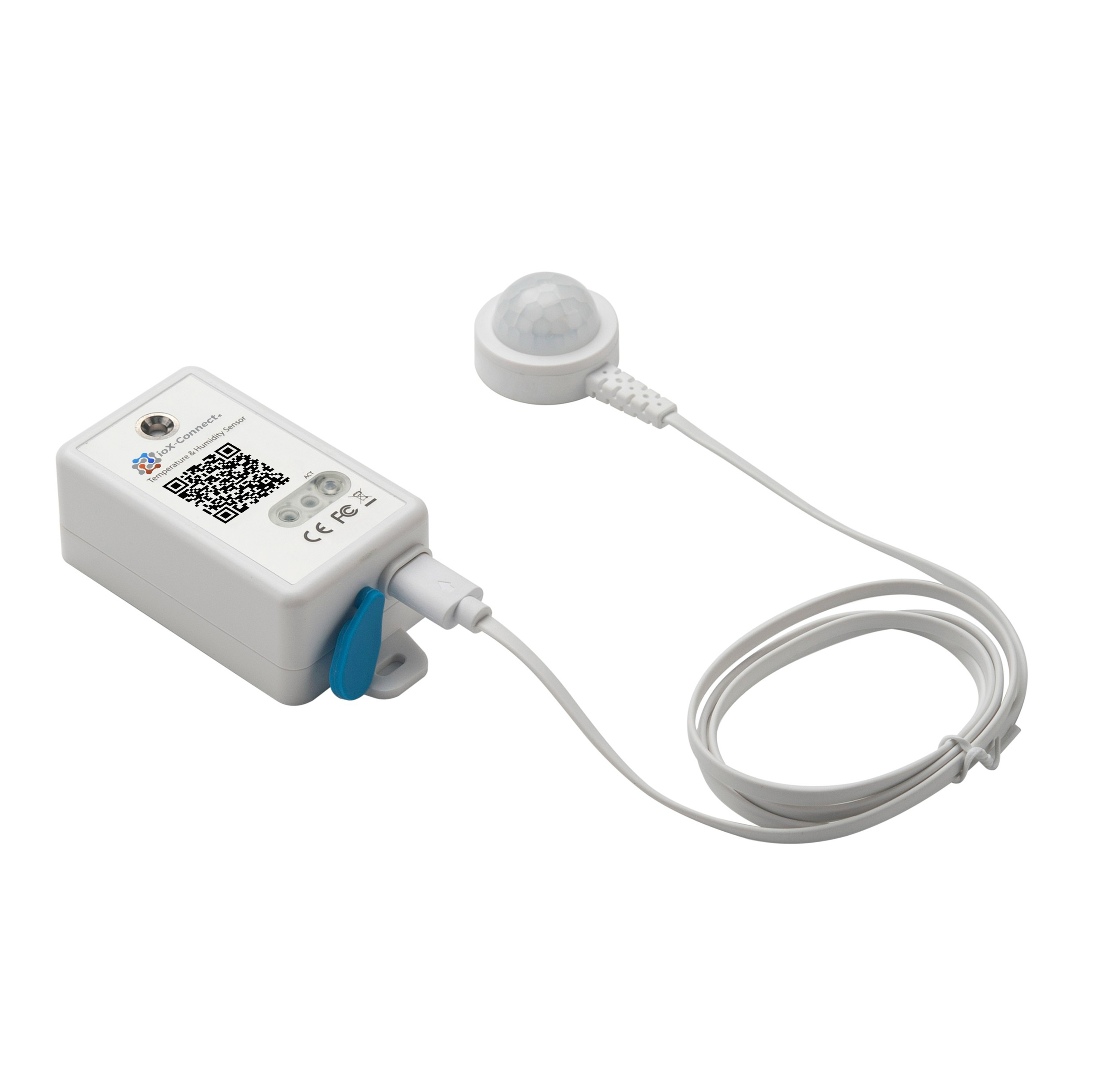

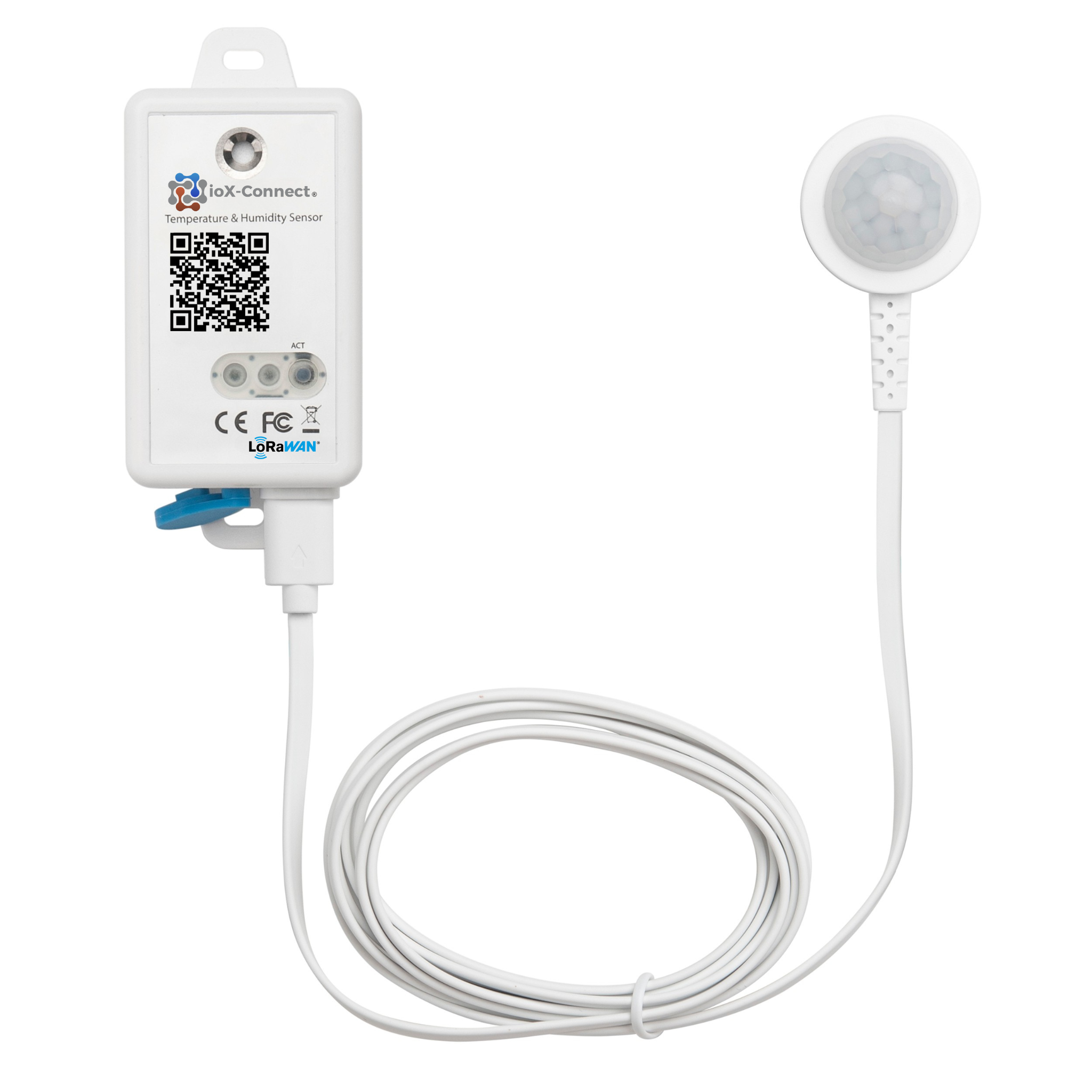

- ioX-Connect Wireless Motion+ Sensor: Powered by two AA batteries, this sensor not only detects movement but also monitors temperature ranges from -40°F to 257°F (-40°C to 125°C) and humidity levels from 0–100% RH, making it ideal for climate-sensitive monitoring.
Optimize your HVAC usage and enhance sanitation with actionable traffic data analysis provided by our sensors. Whether it’s for home security, commercial use, or industrial applications, our motion sensors deliver reliability and performance.
Intelligent Motion Detection and Occupancy Monitoring Solutions
Free Basic Monitoring Software included in any hardware purchase.

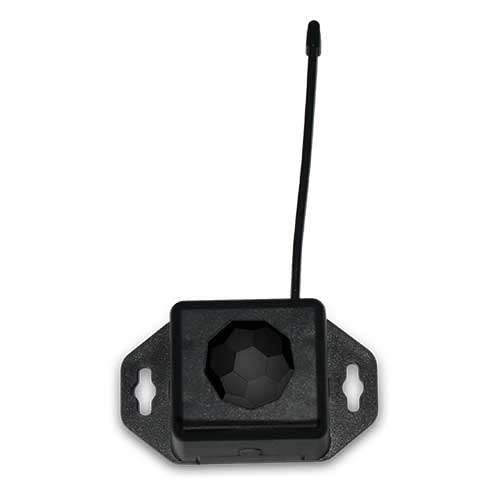

Wireless Motion Detect Sensor (Coin Cell)
Detect motion via passive infrared (PIR) technology to augment facility security, protect inventory, or optimize building services through usage data.

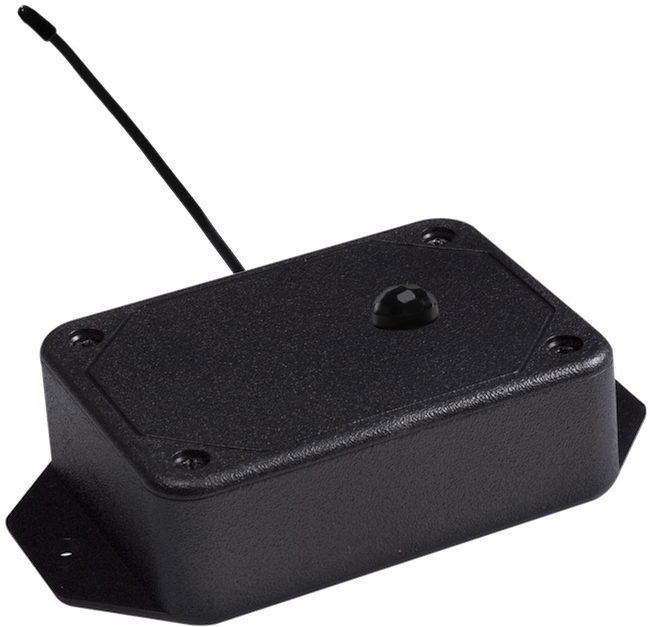

Wireless Motion Detect Sensor (AA Battery Powered)
Detect motion via passive infrared (PIR) technology to augment facility security, protect inventory, or optimize building services through usage data.

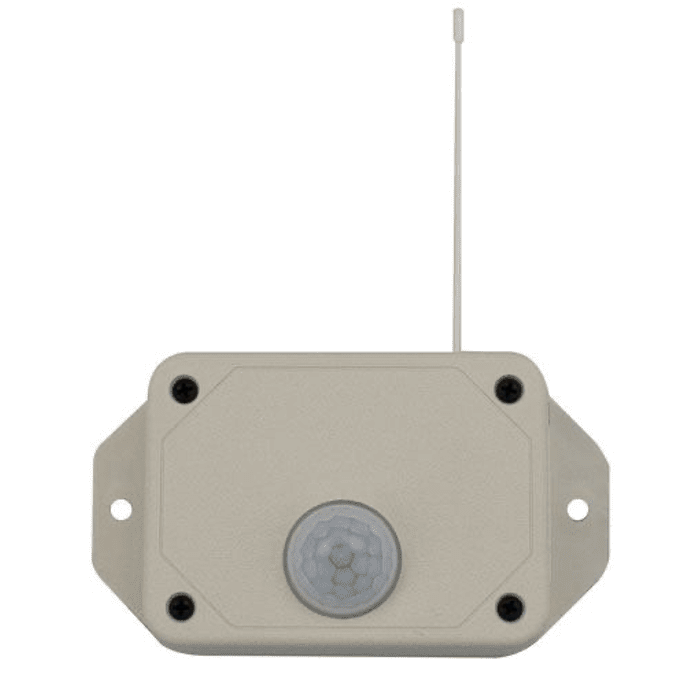

Wide Angle Motion Detect Sensor (AA Battery Powered)
Detect motion via passive infrared (PIR) technology to augment facility security, protect inventory, or optimize building services through usage data.
- Enterprise AA-battery powered: Our most popular type is ideal for typical commercial & enterprise environments, such as server rooms. A 1,200+ ft. range readily covers most facilities.
- Commercial CC-battery powered: Compact sensor is great for space-restricted areas such as control cabinets or cold storage.
- Industrial: Sensor's weatherproof, NEMA-rated enclosure withstands demanding indoor/outdoor use, e.g., warehouses & production facilities.
Connection Type | Wireless | ||
---|---|---|---|
Sensor Type | Commercial (CC Battery) | Enterprise (AA Battery) | Industrial |
Sensor Housing Dimensions1 |
2.0" (50.8 mm) Width 0.875" (22.225 mm) Height 1.125" (28.575 mm) Depth |
4.375" (111.125 mm) Width 2.470" (62.738 mm) Height 1.111" (28.219 mm) Depth |
3.701" (94.0 mm) Width 2.316" (58.84 mm) Height 1.378" (35.0 mm) Depth |
Gateway Required? | Yes | Yes | Yes |
Range2 | 1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
Battery Required? | Yes Coin Cell (CR123) |
Yes Two AA's |
Yes 1800mAH Industrial |
Battery Life3 | Up to 2 Years | Up to 10 Years | Up to 5 Years |
Internet Required for Data Transmission?4 | No | No | No |
Outdoor Use or Wet Conditions? | No | No | Yes (IP65 Nema Rated Housing) |
Works with Other ioX-Connect Sensors? | Yes | Yes | Yes |
1Dimensions for standard housing sizes. For sensors in non-typical housings, please refer to their data sheets.
2Actual range may vary depending on environment.
3Battery life is determined by sensor reporting frequency and other variables.
4This is transmission from sensor to gateway. All gateways will need active connection for transmission to ioX-Connect. Gateway transmission can be Ethernet or Cellular.
Data Sheets:
OTHER DOCUMENTS:
Exceptional Value
Industry leading wireless sensor range, offering multiple installation options
Best in class power management technology allows for greater sensor battery life.
With so many different sensor types, ioX wireless sensors gives you options to monitor multiple scenarios.
Be up and running within 15 minutes. Easy plug-and-play IoT solution.
Your all-in-one wireless monitoring solution
Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below.
ioX-Connect's Wireless Sensor communication can reach 1,200+ feet through 12+ walls non-line-of-sight.
You can connect up to 50 different ioX Wireless Sensors to 1 gateway. Gateways can also serve as range extenders if you have a big site where sensors will be installed more than 1,000 ft apart.
The life span of the battery is dependent on several factors, including:
- How frequently does the sensor transmit data (Heartbeat)
- How far the sensor is from the wireless gateway
- The obstructions that can cause difficulty in sending data (farther distance and obstructions require that the radio operate at longer intervals to send and receive data)
ioX-Connect Sensors and Gateways provide automated data logging. Our sensors can store up to 4,000 messages if the gateway connection is lost (non-volatile flash, persists through the power cycle). For 10-minute Heartbeat settings, this accounts for approximately 22 days of messages or readings. For 2-hour Heartbeat settings, our sensors can log up to 266 days of readings.
Plus, our gateways can save up to 50,000 sensor messages if its connection is lost. Our sensors and gateways can log all this data before sending it to the ioX-Connect platform—our sensor management and monitoring software—for cloud storage, trending, and analysis.
ioX-Connect wireless products use Encrypt-RF bank-level security, featuring a 256-bit exchange to establish a globally unique key and an AES-128 CTR for all data messages. Security is maintained at all communication points from sensor to gateway, gateway to software, and back again.
ioX-Connect's standard wireless products use several features to help protect sensor data in transit. The proprietary sensor protocol uses very low transmit power and requires specialized radio equipment to operate. Typical wireless devices that run on non-proprietary communication protocols (Wi-Fi, Bluetooth, Zigbee) operate using different frequency bands, so you can't use them to eavesdrop on the radio communications from the ioX-Connect family of sensors. In addition, we use a robust packet tampering evaluation routine to ensure that traffic isn't altered between the sensors and the gateways. This enables us to check for well-formed data packets that only originate from ioX-Connect enabled devices. We have algorithms that protect against spoofing and re-transmission of wireless data packets to safeguard data further.
Absolutely! This is what sets ioX-Connect apart from all other IoT solutions out there. ioX-Connect's Analytics module allows you to combine data from different sources not just sensors to create cross functional reports, analyze and trend sensor data, interact with your historical data and collaborate across departments thereby giving you more insights into your business/operations.
Yes. The ioX-Connect platform can be fed with data from external sensors provided we can retrieve the external sensor data through some service like an API. Please reach out to us at: sales@iox-connect.com for more detail on integration capabilities.
