Wireless Soil Moisture Sensors
Remotely Monitor Soil Moisture levels to track and react to critical temperature issues in real time
Get critical insights from your soil with the ioX-Connect Wireless Soil Moisture Sensor. This advanced tool is designed to provide precise measurements of soil water tension and temperature, making it an essential aid for any serious gardener or farmer focused on optimizing irrigation and enhancing water conservation.
Exceptional Value
Industry leading wireless sensor range, offering multiple installation options
Best in class power management technology allows for greater sensor battery life.
With so many different sensor types, ioX wireless sensors gives you options to monitor multiple scenarios.
Be up and running within 15 minutes. Easy plug-and-play IoT solution.

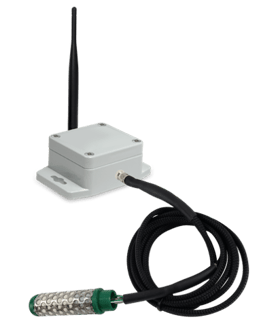

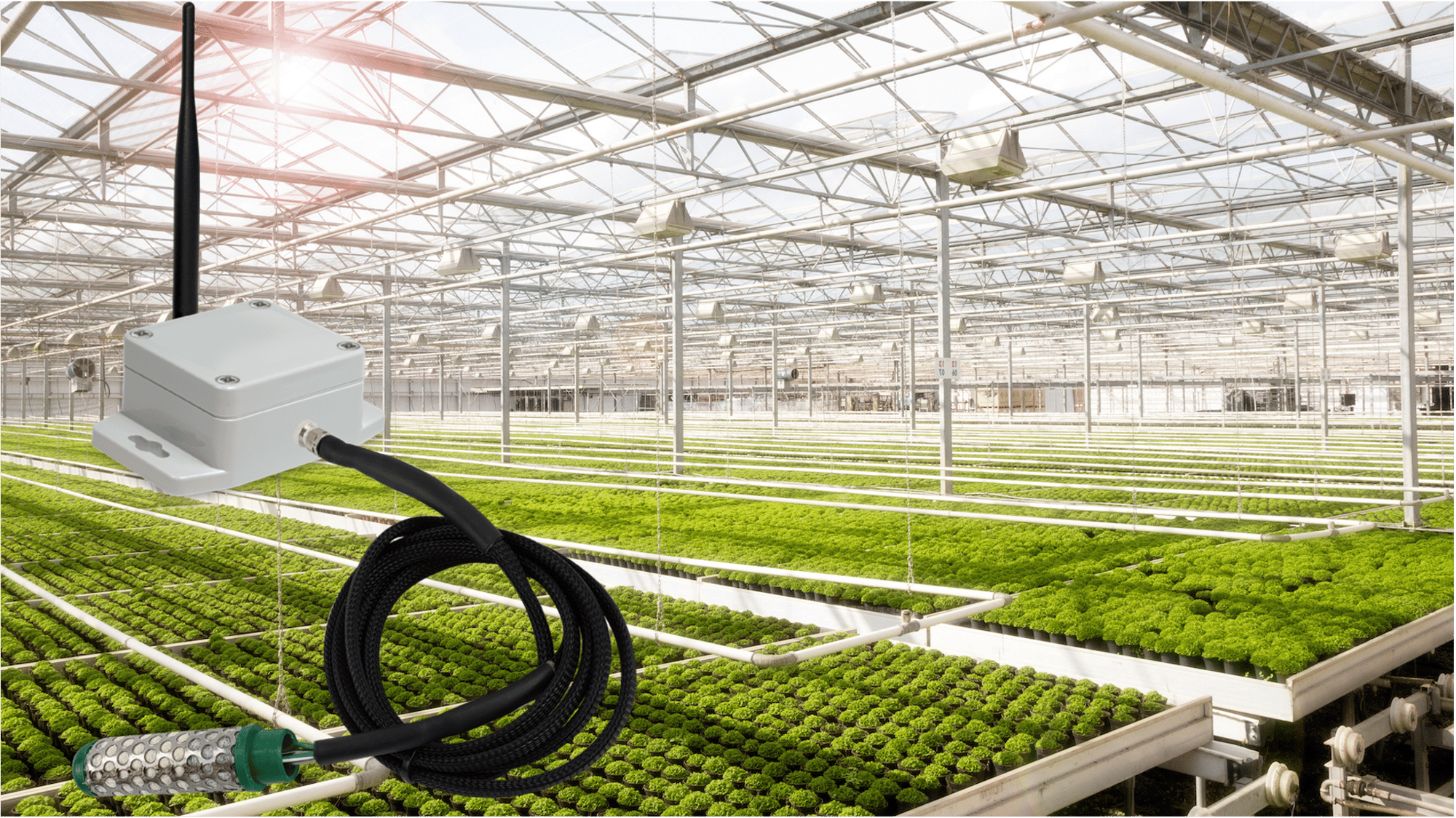

About Our ioX-Connect Wireless Soil Moisture Sensor
The ioX-Connect Wireless Soil Moisture Sensorrepresents a significant advancement in agricultural technology, offering a comprehensive solution to one of the most persistent challenges in farming: effective water management. By providing precise measurements of soil moisture and temperature, this sensor allows users to make smarter decisions that lead to improved crop health and yield.
Optimal Water Use
Understanding the exact water content in soil is crucial for efficient irrigation. Our sensor ensures that you water your crops only as much as they need, preventing both underwatering and overwatering. This precise irrigation helps in significantly reducing water wastage and in maintaining optimal soil moisture levels, promoting healthier plant growth.
Real-Time Data
With its wireless capabilities, the ioX-Connect Sensor transmits real-time data directly to your device. This immediate feedback allows for quick adjustments to watering schedules as weather conditions change, ensuring that your plants always have the right amount of moisture.
Durable and Reliable
Engineered to withstand the rigors of outdoor agricultural environments, our sensor operates effectively within a temperature range of -40°C to 125°C (-40°F to 257°F). Whether you're dealing with a cold snap or a heat wave, our sensor delivers reliable performance.
Easy to Integrate and Use
Installation is straightforward, and once in place, the sensor integrates seamlessly into your existing agricultural management systems. Its user-friendly design ensures that you can start monitoring and improving your irrigation practices with minimal setup time.
Cost-Effective
By optimizing your water usage, the ioX-Connect Sensor not only conserves a valuable resource but also reduces your water bills. Over time, the savings on water can significantly offset the initial investment in the sensor.
ioX-Connect Wireless IoT Sensors
ioX-Connect Remote Monitoring Systems offers a comprehensive cloud-based platform designed to manage an array of over 80 sensors types, as well as integrate with your existing monitoring tools. Our platform serves as the command center for your devices, allowing you to tailor their settings to your specific needs and operational processes. Equipped with state-of-the-art wireless sensors, gateways, and software, it empowers the Internet of Things (IoT) to speak on behalf of your business.
The ioX ecosystem encompasses a diverse range of more than 80 types of sensors. These sensors are finely tuned to monitor for critical changes in conditions — from unusual vibrations and temperatures to the presence of water, and fluctuations in electrical currents and voltages. This robust wireless sensing solution operates autonomously, providing a protective shield for your financial health.
- Enterprise AA-battery powered: Our most popular type is ideal for typical commercial & enterprise environments, such as server rooms. A 1,200+ ft. range readily covers most facilities.
- Commercial CC-battery powered: Compact sensor is great for space-restricted areas such as control cabinets or cold storage.
- Industrial: Sensor's weatherproof, NEMA-rated enclosure withstands demanding indoor/outdoor use, e.g., warehouses & production facilities.
Connection Type | Wireless | ||
---|---|---|---|
Sensor Type | Commercial (CC Battery) | Enterprise (AA Battery) | Industrial |
Sensor Housing Dimensions1 |
2.0" (50.8 mm) Width 0.875" (22.225 mm) Height 1.125" (28.575 mm) Depth |
4.375" (111.125 mm) Width 2.470" (62.738 mm) Height 1.111" (28.219 mm) Depth |
3.701" (94.0 mm) Width 2.316" (58.84 mm) Height 1.378" (35.0 mm) Depth |
Gateway Required? | Yes | Yes | Yes |
Range2 | 1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
1200+ Feet 12+ Walls |
Battery Required? | Yes Coin Cell (CR123) |
Yes Two AA's |
Yes 1800mAH Industrial |
Battery Life3 | Up to 2 Years | Up to 10 Years | Up to 5 Years |
Internet Required for Data Transmission?4 | No | No | No |
Outdoor Use or Wet Conditions? | No | No | Yes (IP65 Nema Rated Housing) |
Works with Other ioX-Connect Sensors? | Yes | Yes | Yes |
1Dimensions for standard housing sizes. For sensors in non-typical housings, please refer to their data sheets.
2Actual range may vary depending on environment.
3Battery life is determined by sensor reporting frequency and other variables.
4This is transmission from sensor to gateway. All gateways will need active connection for transmission to ioX-Connect. Gateway transmission can be Ethernet or Cellular.
Your all-in-one wireless monitoring solution
Please reach out to us at: sales@iox-connect.com if you have any additional questions that are not addressed below.
ioX-Connect's Wireless Sensor communication can reach 1,200+ feet through 12+ walls non-line-of-sight.
You can connect up to 50 different ioX Wireless Sensors to 1 gateway. Gateways can also serve as range extenders if you have a big site where sensors will be installed more than 1,000 ft apart.
The life span of the battery is dependent on several factors, including:
- How frequently does the sensor transmit data (Heartbeat)
- How far the sensor is from the wireless gateway
- The obstructions that can cause difficulty in sending data (farther distance and obstructions require that the radio operate at longer intervals to send and receive data)
ioX-Connect Sensors and Gateways provide automated data logging. Our sensors can store up to 4,000 messages if the gateway connection is lost (non-volatile flash, persists through the power cycle). For 10-minute Heartbeat settings, this accounts for approximately 22 days of messages or readings. For 2-hour Heartbeat settings, our sensors can log up to 266 days of readings.
Plus, our gateways can save up to 50,000 sensor messages if its connection is lost. Our sensors and gateways can log all this data before sending it to the ioX-Connect platform—our sensor management and monitoring software—for cloud storage, trending, and analysis.
ioX-Connect wireless products use Encrypt-RF bank-level security, featuring a 256-bit exchange to establish a globally unique key and an AES-128 CTR for all data messages. Security is maintained at all communication points from sensor to gateway, gateway to software, and back again.
ioX-Connect's standard wireless products use several features to help protect sensor data in transit. The proprietary sensor protocol uses very low transmit power and requires specialized radio equipment to operate. Typical wireless devices that run on non-proprietary communication protocols (Wi-Fi, Bluetooth, Zigbee) operate using different frequency bands, so you can't use them to eavesdrop on the radio communications from the ioX-Connect family of sensors. In addition, we use a robust packet tampering evaluation routine to ensure that traffic isn't altered between the sensors and the gateways. This enables us to check for well-formed data packets that only originate from ioX-Connect enabled devices. We have algorithms that protect against spoofing and re-transmission of wireless data packets to safeguard data further.
Absolutely! This is what sets ioX-Connect apart from all other IoT solutions out there. ioX-Connect's Analytics module allows you to combine data from different sources not just sensors to create cross functional reports, analyze and trend sensor data, interact with your historical data and collaborate across departments thereby giving you more insights into your business/operations.
Yes. The ioX-Connect platform can be fed with data from external sensors provided we can retrieve the external sensor data through some service like an API. Please reach out to us at: sales@iox-connect.com for more detail on integration capabilities.
